Institutional building: point cloud to BIM evidence
A multi-storey existing building reconstructed from registered point-cloud information into a structured BIM model. The paired views below let buyers inspect geometric interpretation at building, façade, and plan scale.
- Input visible
- Registered point-cloud views
- Output visible
- Processed BIM model views
- Views compared
- 3D, east elevation, ground floor
- Best suited to
- Existing-building documentation and renovation
Paired visual record
Source-to-model evidence
Use each pair as a review aid. Image comparison can demonstrate modelling coverage and interpretation, but formal acceptance still requires the native survey, model, coordinate checks, element scope, and agreed tolerances.

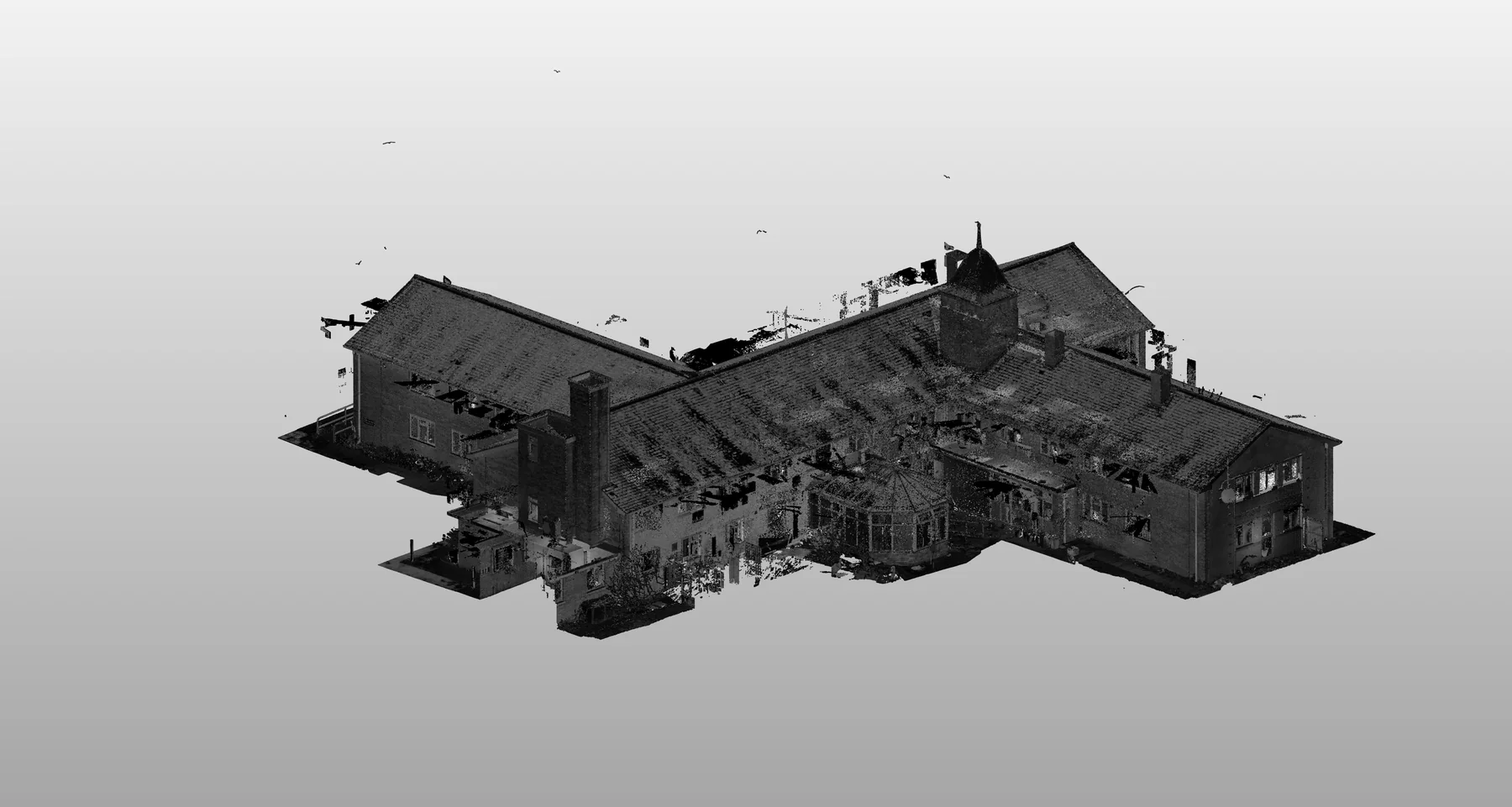

Source point cloud: complete building

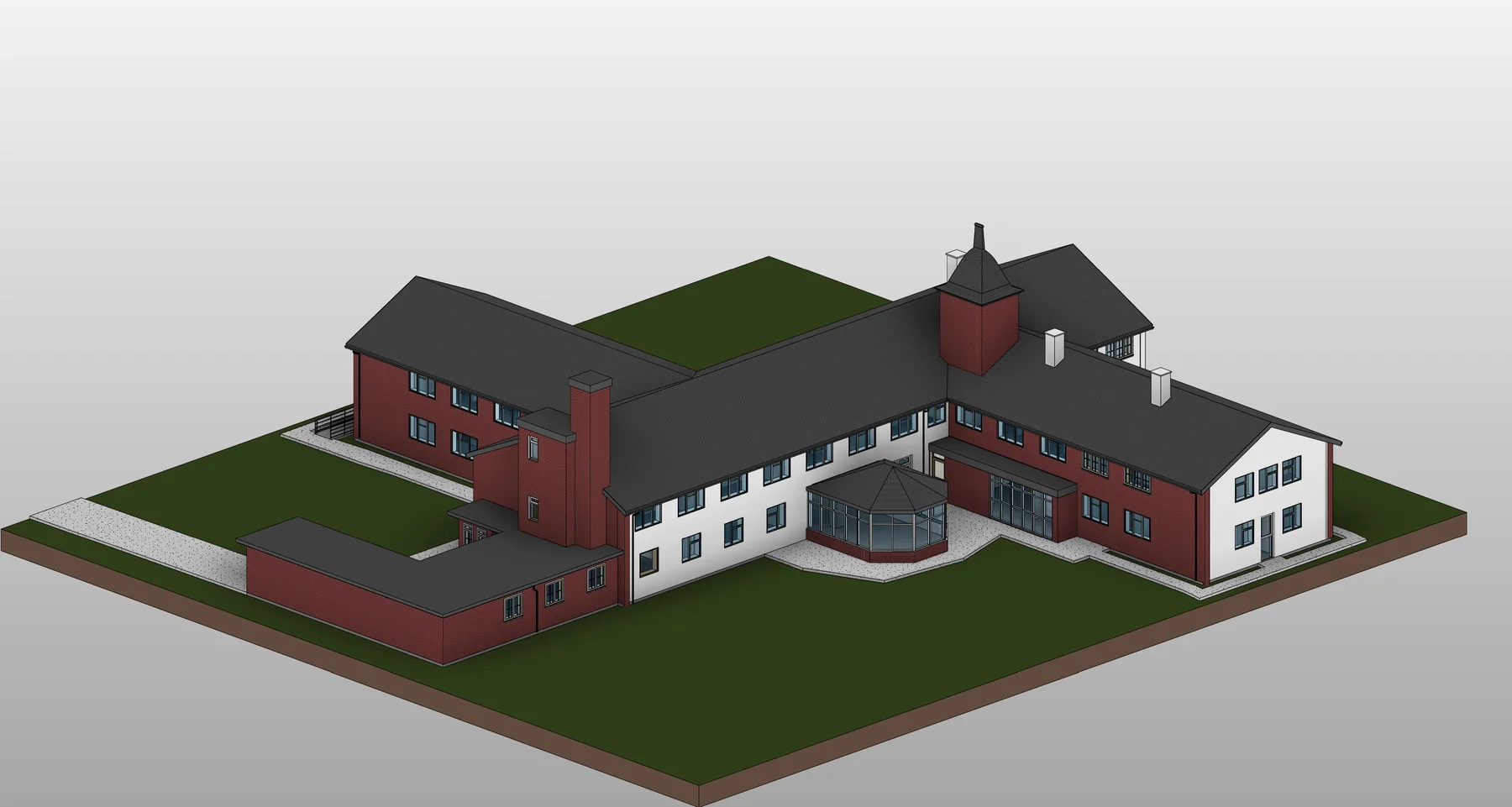

Processed BIM: complete building

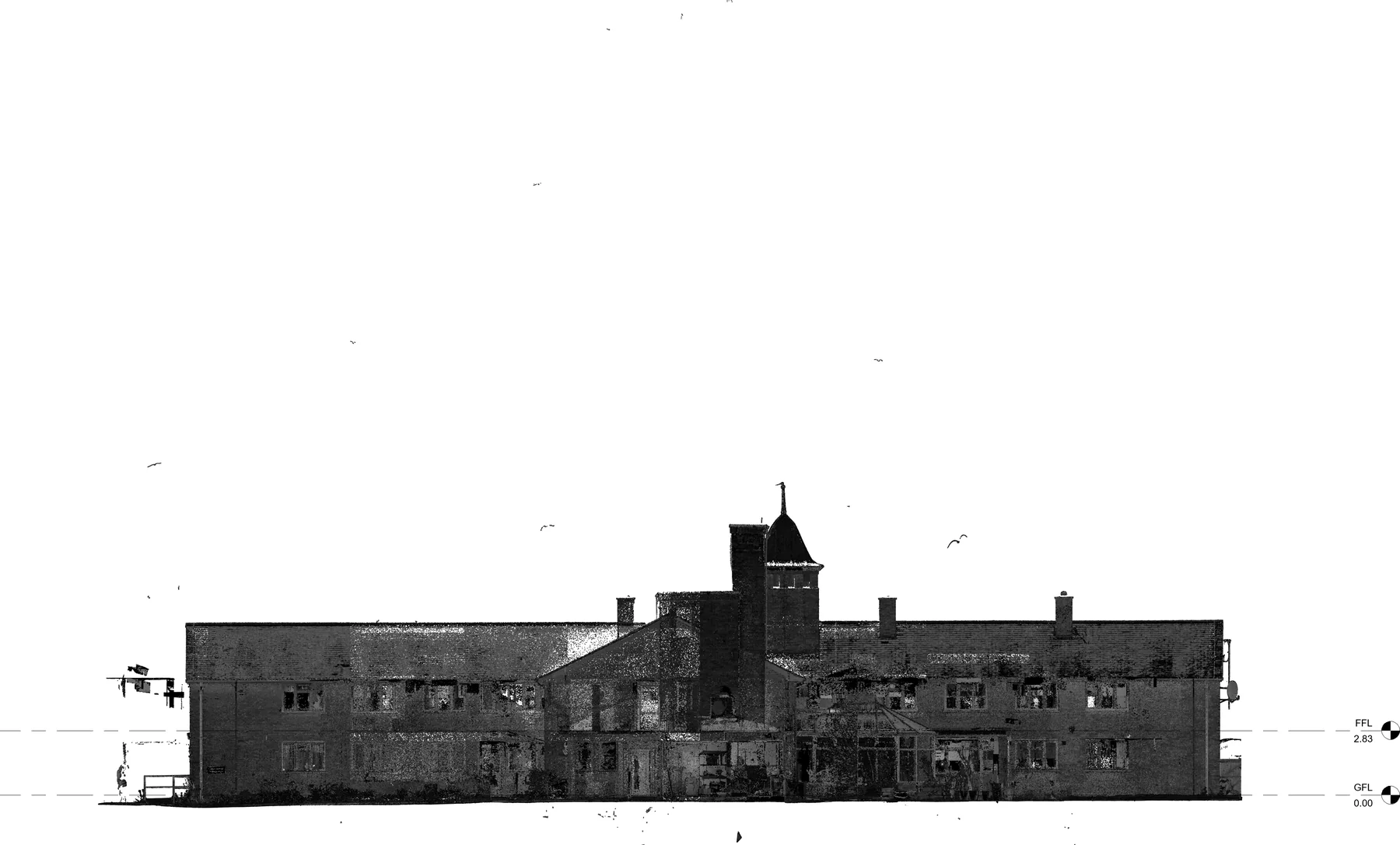

Source point cloud: east elevation

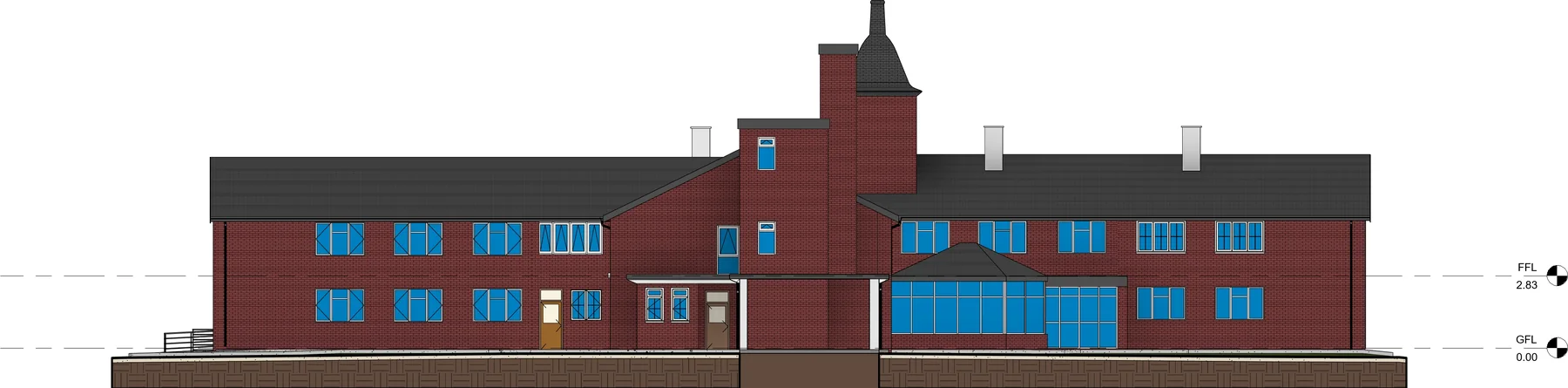

Processed BIM: east elevation

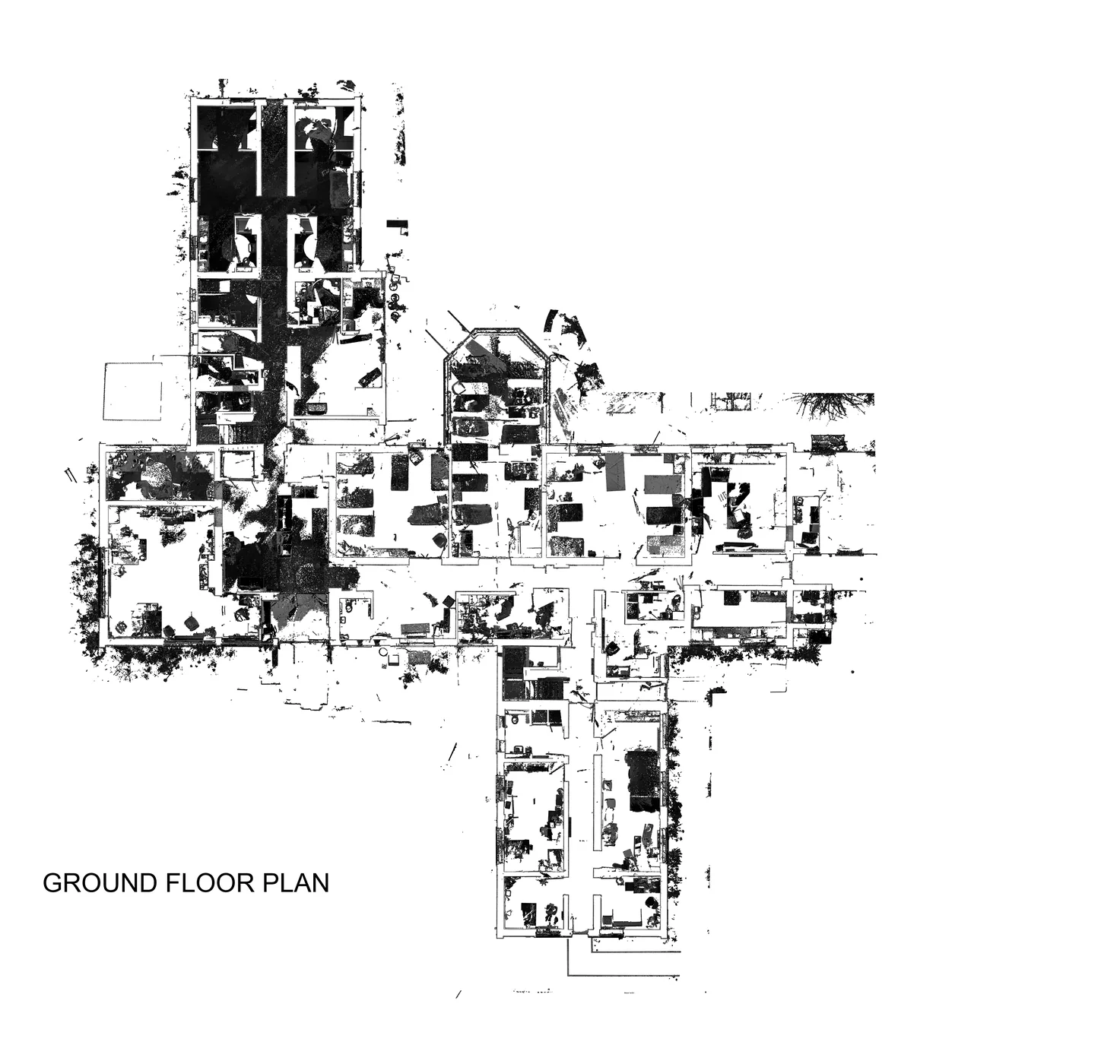

Source point cloud: ground-floor slice

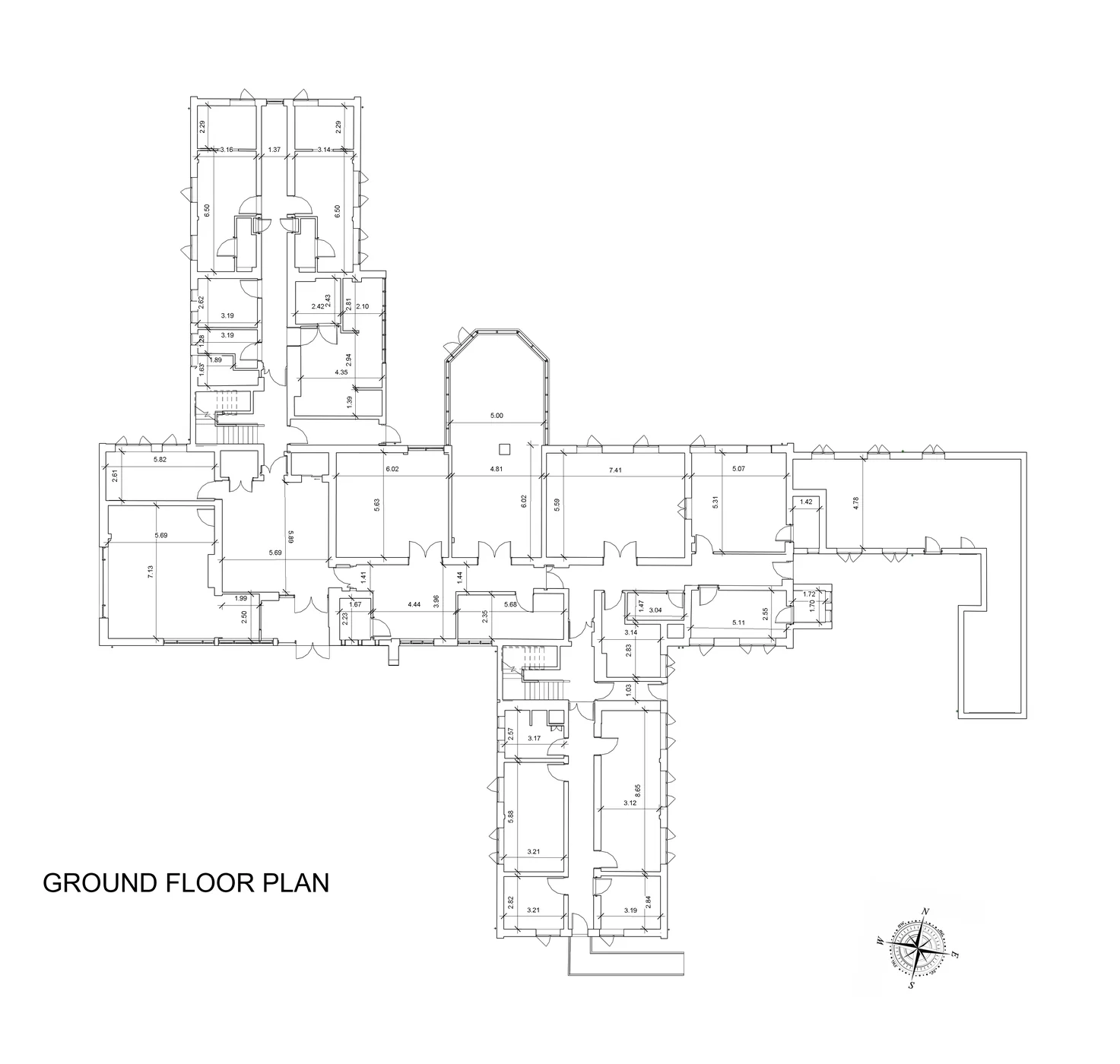

Processed BIM: ground-floor plan
Technical reading
What experienced reviewers should inspect
- Multiple roof geometries and projecting volumes require disciplined datum and level control.
- Elevation comparison exposes omissions and inconsistent opening placement more clearly than a polished rendering.
- Plan conversion requires judgement where scan density, occlusion, or clutter obscures wall faces and door openings.
Comparable delivery
Workflow for a similar project
For a similar existing-building commission, we would confirm coordinate strategy, crop and inspect the registered cloud, establish levels and grids, model agreed architectural elements, run cloud-overlay checks, record unresolved conditions, and issue the model with an exceptions register.
Read the full Scan-to-BIM workflow and use our LOD/LOI matrix to define acceptance before modelling begins.
Buyer relevance
Where this capability creates value
Useful for renovation feasibility, existing-condition drawings, asset records, coordination backgrounds, and design-team onboarding where a structured representation of a substantial existing building is required.
The correct deliverable depends on intended use. A quotation should therefore state disciplines, element scope, LOD/LOI, coordinates, units, file formats, QA evidence, exclusions, and revision rounds—not just a price per square metre.
Acceptance evidence
What we would include in an auditable QA pack
Scope and exception register
Modelled elements, known gaps, occluded areas, assumptions, and excluded conditions.
Model-health checks
Agreed checks for coordinates, levels, warnings, naming, links, file structure, and delivery format.
Start with evidence
Test us on your own authorized dataset
Send a representative cloud extract, target software, intended use, element scope, and required delivery date. We can propose a bounded pilot and acceptance plan before a larger commission.
